Easy Nutrient Dosing for Large Systems

Upon entering a vast greenhouse, with its seemingly endless rows of plants, the critical nature of strict nutrient dosing becomes immediately apparent when so much is at stake. It is understood that one cannot simply add a general solution and hope for the best; precision is paramount.

Every hour. Every single day. Pumps, sensors, reservoirs, controllers, all of them are supposed to work together. Sometimes they don’t, and that’s when things get bad fast. Calibration? That’s not a one-and-done deal.

Miss a setting, and you could lose a whole crop or wipe out a tank. So what really goes into nutrient dosing at this scale? The pieces, the numbers, the odd tricks people use, and honestly, the headaches.

Key Takeaways

• Automated nutrient dosing systems rely on pumps, sensors, and controllers to maintain precise nutrient delivery.
• Balancing pH, electrical conductivity, and nutrient ratios is critical for optimizing plant and aquatic growth.
• Regular maintenance, sensor calibration, and manual oversight remain essential despite automation.

Core Components of Large-Scale Nutrient Dosing Systems

Large-scale nutrient dosing systems are built from several key components that work together to deliver nutrients efficiently and accurately.

Automated Delivery Infrastructure

High-Capacity Water Powered Dosing Pumps

You watch these water powered dosing pumps and it’s almost hypnotic, the way they just keep things going. Most push more than 14 gallons every minute. That’s a lot. Enough to keep a big greenhouse or fish system moving, no problem.

They mix nutrients and send them right into the irrigation or aquaculture lines. No electric parts in the water, which is smart. Less stuff to break, less hassle. Honestly, one wonders why anyone would do it another way.(1)

pH and Electrical Conductivity (EC) Sensors

pH and EC sensors are the system’s senses. pH sensors keep the solution in this tight window, usually between 5.5 and 6.5. Not much room to mess up. EC sensors check how much salt is in there, really just measuring nutrients.

If you feed too much or too little, these will let you know. Both need calibration a lot, maybe more than most people realize. They drift, they get off, and then the whole dosing is wrong. It’s a bit of a pain, but necessary.

Large Volume Reservoir Networks

Big operations mean big tanks. Usually 450 liters or more. Sometimes a lot more. These reservoirs have to keep everything mixed, so you’ll see pumps or spray bars moving things around. If not, nutrients settle, and the mix gets uneven.

That’s no good. The tanks are built for easy cleaning or refilling, which is just common sense. No one wants to wrestle with a tank when it’s time to scrub it out.

In Line Nutrient Injection Systems

In line injectors do their work right in the water pipes. They mix nutrients as the water moves. So nutrients only go out when the water does. Not much waste. It’s especially good for drip irrigation and fertigation. Precision matters there. You can see the difference.

Integration with Control Systems

Computerized Controllers for Real Time Data Processing

Controllers take what the sensors say and tell the pumps what to do next. They use algorithms to keep pH and EC where you want them. Adding acid, base, or nutrients as needed. This feedback loop runs all the time.

Keeps the root zone steady, even if the weather outside is wild or unpredictable. Sometimes the system just hums along, other times it’s working overtime.

Programmable Logic Controllers (PLCs) and Cloud Monitoring

PLCs let you set up dosing schedules and tie everything into the rest of the farm’s automation. With cloud monitoring, you can check things from anywhere. Get alerts if something’s off, look at logs, tweak a setting here or there.

It’s easier to spot trouble before it gets big. Sometimes you catch a problem before anyone on site even notices. Keeps things running, mostly smooth.

Key Operational Parameters and Balancing Techniques

Successful nutrient dosing hinges on managing several interrelated parameters that affect plant and aquatic health.

Nutrient Ratio Management

Adjusting NPK Ratios for Crop and Growth Stage

It is evident that not all plants share the same nutritional requirements; in fact, these needs can vary significantly. The balance of nitrogen, phosphorus, and potassium must be tailored to each specific crop and its current stage of development.

Leafy greens, for example, exhibit a higher demand for nitrogen during their period of active leaf production.

Conversely, fruiting plants develop an increased need for potassium as they approach harvest. This critical transition in nutrient demand can be easily missed if not closely monitored.

In larger-scale agricultural systems, programmable dosing systems are commonly utilized, which automatically adjust the nutrient mix as the plants progress through their growth phases. Such automated systems can significantly reduce potential issues and may prove indispensable for maintaining optimal conditions in extensive operations.

pH Level Control

Maintaining Optimal pH (5.5 to 6.5) Through Automated Acid or Base Injection

pH is the gatekeeper. If it slips outside 5.5 to 6.5, the roots stop taking in nutrients. The plant doesn’t scream, but it shows you. Leaves curl, stems droop, and that green turns pale.

Automated dosing systems try to keep pH balanced. They drip in acid or base when the sensors detect a shift. But sensors aren’t perfect. If they lag or overshoot, things go wrong fast.

There’s a tight margin between just enough and way too much. So growers have to:

• Check calibration often
• Watch for sensor drift
• Adjust dosing frequency and concentration manually

Even with tech, it takes some finesse.

Electrical Conductivity (EC) Regulation

Setting EC Thresholds Based on Crop Tolerance (1.2 to 3.5 mS/cm)

EC, electrical conductivity, tells you how much stuff is dissolved in your water. Nutrients, mostly. Each crop has its own sweet spot. Lettuce likes it around 1.5 mS/cm. Tomatoes? They can handle up to 3.5 mS/cm, no problem.

If EC gets too high or too low, the plants show it. Wilting, yellowing, slow growth. Sometimes all three. So keeping EC in range is probably the difference between a good harvest and a disappointing one. Maybe even the difference between profit and loss.

Scalability and System Sizing

Calculating Nutrient Stock Requirements for Large Reservoirs

Big reservoirs are tricky. You can’t just guess. Say you want 200 ppm in a 1000 liter tank, and your stock solution is 10,000 ppm. You’d need to add 20 liters of stock to get there. That math keeps your batches consistent.

It’s not optional if you want steady results. And if you mess it up, you’ll know. Plants will tell you, just not with words.

Example Dosing Calculation for Programmable Controllers

target_concentration = 200  # ppm

reservoir_volume = 1000  # liters

stock_solution_strength = 10000  # ppm

required_stock = (target_concentration * reservoir_volume) / stock_solution_strength

print(f”Add {required_stock} liters of stock solution”)  # Output: 20 liters

Controllers use such formulas to automate dosing schedules, adjusting for reservoir volume changes and nutrient depletion.

Advanced Nutrient Dosing Methodologies

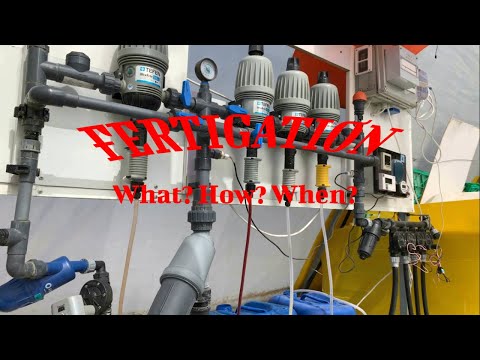

Credits : Agrosheriff – TV

Precision in nutrient dosing improves when systems incorporate advanced control strategies beyond simple timers.

Sensor Feedback Systems

Real-Time EC and pH Adjustments with ±5% Error Rate

Systems that rely on continuous sensor feedback can adjust dosing dynamically, maintaining nutrient concentrations within a 5% margin of error. These systems respond to environmental changes like temperature shifts or plant uptake rates but depend heavily on sensor reliability.

Predictive Modeling Approaches

Absorption Rate Algorithms Achieving ±3% Accuracy

Plants have patterns. Tomato vines ask for more potassium near fruiting, lettuce laps up nitrogen early on. Predictive models lean into these rhythms. They don’t wait for sensors to react. They guess ahead, based on crop species, growth stage, and environmental input.

The models crunch real data. Temperature, humidity, light hours. Then they forecast how much nutrient the plant will need tomorrow, not just today. It’s more like a weather app for roots.

These systems often hit ±3% accuracy. That’s better than sensors alone, and without depending on fragile hardware. But they do assume conditions stay close to predicted trends. If a heatwave rolls in or your fan breaks, the model won’t know unless it’s told.

A few strengths worth noting:

• Fewer mechanical parts
• Less drift from sensor fouling
• More efficient nutrient use

Still, setup’s not always simple. You need crop specific data. And calibration takes time, weeks, sometimes. But once it clicks, it’s quieter, smarter. Like a grower who’s learned the season just by watching the leaves.

Hybrid Systems Combining Sensor Inputs and Equation-Based Controls

Enhanced Precision with ±1.5% Error Rate and Feedback Loops

Hybrid systems merge real-time sensor data with predictive algorithms, creating a feedback loop that corrects dosing errors promptly. This approach achieves the highest accuracy, critical for precision agriculture and high value crops.

Industrial Applications and Optimization Strategies

Large-scale nutrient dosing systems find use in diverse agricultural and aquaculture settings, each with unique demands.

Hydroponic and Vertical Farming Applications

Continuous Nutrient Flow for Accelerated Growth Rates

One could stand in the middle of a hydroponic farm and hear nothing but the soft hum of pumps. There is no soil, no tilling. Roots are simply suspended, either in air or within clay pellets, soaking up nutrients from a gentle, always-moving stream. That steady nutrient flow makes a difference.(2)

Plants grow faster in water. Some say up to 50% faster compared to soil. It’s not just because of nutrients, though that’s a big part, but also the consistency. Water doesn’t dry out. Nutrients don’t settle. That flow keeps everything even.

Especially in vertical farming, where crops grow on shelves stacked toward the ceiling, it’s easy for light and heat to shift as you move up or down. But nutrient dosing systems, the automated kind, deliver the same exact mixture to every layer, or tweak it if needed.

• Delivers nutrients 24/7
• Keeps pH levels balanced
• Works across multiple crop zones

Everything works better when the roots are never thirsty and never guessing.

Customized Nutrient Recipes for Stacked Growth Layers

Vertical farms often require different nutrient mixes per layer to accommodate varying light and temperature conditions. Programmable dosing systems allow layering of nutrient recipes, optimizing growth for each tier.

Aquaculture Nutrient Management

Timed Injections to Reduce Fish Waste Concentration

In aquaculture, nutrient dosing controls water quality by balancing feed inputs and waste outputs. Timed injections of nutrients and water treatments reduce fish waste buildup by up to 60%, improving fish health and minimizing environmental impact.

Nutrient Budgeting and Tracking

Utilizing Software Tools for Input-Output Monitoring

Software like PLANET tracks nutrient inputs and outputs, helping farmers maintain nutrient balances and avoid over-fertilization. This budgeting supports sustainable practices and regulatory compliance.

Maintaining Nutrient Balances in Various Agricultural Systems

You can’t just dump nitrogen into the soil and walk away. In dairy systems, for example, keeping nitrogen under 120 kg per hectare per year helps prevent runoff. Keeps the water clean.

Automated nutrient dosing helps here too. It’s not only for hydroponics. Fields, greenhouses, even pasture-fed systems can use smart dosing to stay within target ranges.

• Reduces nitrogen leaching
• Matches seasonal growth needs
• Supports compliance with local regulations

The system adjusts itself. If the soil’s already rich, it slows down. If a rainstorm washes nutrients away, it bumps the next dose. That kind of give-and-take is hard to do by hand, especially across acres.

Preventive Maintenance and Automation Protocols

Sensor Calibration and Line Flushing Schedules

Sensors require weekly calibration to maintain accuracy. Nutrient lines need flushing every two weeks to prevent clogging from precipitates or biofilm buildup, ensuring uninterrupted flow.

Implementing Automation to Optimize Efficiency and Accuracy

Humans miss things. Automation doesn’t sleep, doesn’t forget, doesn’t get tired. Programmable logic controllers (PLCs) handle schedules minute by minute. They deliver nutrients on time, every time.

Cloud monitoring keeps watch from anywhere. If a pump fails, you get an alert. If pH starts drifting, it’ll nudge it back. You don’t have to guess what’s happening in the greenhouse at 3 a.m.

• PLCs automate dosing and correction
• Cloud systems alert users to issues
• Cuts labor time and reduces error rates

The machines don’t take over. But they take care of the boring parts. That lets people focus on the growing.

Cost-Benefit Considerations

Balancing Initial Automation Investment Against Yield and Resource Savings

Automated nutrient dosing systems can cost between $15,000 and $50,000 upfront. While expensive, they often pay off through higher yields, reduced fertilizer waste, and labor savings over time.

Importance of Nutrient Audits and System Redundancy for Reliability

Even with the best system, things go wrong. Pumps fail. Valves stick. That’s why smart setups include redundancy. Backup pumps. Secondary sensors. And a human that still walks the floor once in a while.

Nutrient audits help catch drift. Sometimes a tank gets diluted by accident, or a calibration drifts too far. An audit checks that the system’s giving what it’s supposed to.

• Backup pumps for critical zones
• Dual sensors to catch bad data
• Regular audits for dosing accuracy

It’s not about trusting machines less. It’s about preparing for when something slips. Because eventually, something always does.

Practical Advice for Large-Scale Nutrient Dosing

Managing nutrient dosing in large systems is a continuous process. Here are some tips to keep things running smoothly:

• Prioritize sensor maintenance and manual checks to catch errors early.
• Use dry fertilizers with centralized mixing stations to cut costs.
• Adjust nutrient ratios seasonally or by crop cycle for best results.
• Implement hybrid dosing systems if budget allows, for improved precision.
• Schedule regular flushing and cleaning of reservoirs and lines.
• Monitor system data remotely to respond quickly to issues.
• Keep spare parts and backup sensors on hand to minimize downtime.

FAQ

How does a nutrient dosing system work for large hydroponic systems?

A nutrient dosing system for large hydroponic systems checks your water and adds the right amount of plant food when needed. It uses nutrient dosing pumps to move special mixtures into your water.

The nutrient dosing controller (like a smart brain) watches things like pH and electrical conductivity, and fixes them automatically. This helps plants grow better without you having to do all the work by hand. Farmers with big growing spaces love this because it saves them lots of time.

What are the main parts of a nutrient dosing system?

A nutrient dosing system has several important pieces: pumps, a controller, sensors, tubes, and mixing tanks. The nutrient dosing controller is like the brain that gets info from pH and EC sensors. The pumps move nutrients based on your nutrient dosing formula.

You also need good nutrient dosing tubing to carry the liquids and a nutrient mixing system to blend everything well. Many systems also have extra sensors and alarms to watch for problems and stop plants from getting hurt.

How does automated nutrient dosing help big farms?

Automated nutrient dosing saves farmers time and work. They don’t have to mix nutrients by hand or check on things all day. For large farms, this automation delivers exactly what plants need based on their growth stage and the weather. Nutrient dosing automation makes growing more even across all areas and wastes less water and plant food.

It also allows nutrient dosing optimization by changing what plants get based on what they use. Farmers see bigger harvests and healthier plants when using nutrient dosing for agriculture.

What’s different about nutrient dosing for hydroponics versus soil-less growing?

Both use nutrient dosing for plant growth, but hydroponics uses a nutrient solution reservoir where plants grow right in water with nothing else. Soil less culture (using things like coconut fiber) needs special nutrient dosing system adjustments because of the growing material.

Hydroponic nutrient dosing needs more pH fixes since there’s nothing to buffer the water. Both setups work well with automated nutrient dosing but might need different nutrient dosing rates and formulas. Soil less growing sometimes needs special attention to how plants take up nutrients.

How do pH and EC control work in nutrient dosing systems?

pH control nutrient dosing and EC control nutrient dosing are super important for healthy plants. Sensors always check these levels in your water. When they get too high or low, the nutrient dosing controller tells pumps to add acids/bases (for pH) or nutrients (for EC).

This electrical conductivity dosing keeps nutrients at levels plants can use. Most commercial nutrient dosing systems let you set your target levels so plants always get nutrients they can absorb easily.

What should I look for in nutrient dosing pumps?

Pick nutrient dosing pumps based on how big your system is and what nutrient dosing flow rate you need. Look for pumps with good nutrient dosing accuracy and precision so they add exact amounts every time. Many growers like peristaltic pumps because they don’t touch the nutrients directly.

Think about how much they can pump, how long they last, and if they work with your controller. Good pumps allow nutrient dosing pump calibration to make sure they give exactly what you set. For big systems, have backup pumps ready.

How often should I check and fix my nutrient dosing system?

Regular nutrient dosing calibration keeps everything working right. Check and fix pH and EC sensors weekly if you use them a lot, or at least monthly in steady systems. Do nutrient dosing pump calibration monthly by measuring what comes out against what should come out.

Big temperature changes might mean checking more often. Watch for weird readings or plants growing strangely, which often means you need to calibrate. Keep notes about when you do maintenance to spot patterns that might show bigger problems.

What common problems happen with nutrient dosing systems?

Common issues include clogged nutrient dosing tubing, sensors giving wrong readings, pumps breaking, and control issues. If plants look hungry even with good settings, check nutrient dosing accuracy by testing sensor readings yourself. Buildup in tubes often causes uneven nutrient dosing flow rate.

System problems might come from power issues affecting the nutrient dosing controller. Regular nutrient dosing system maintenance stops many problems – clean filters weekly, check tubes for pinches, and test sensors against special solutions.

How can I use nutrient dosing for fish farming?

Nutrient dosing for aquaculture is different from plant systems because fish get sick from quick water changes. Your nutrient dosing system needs to be more precise and make slower changes.

Focus on gentle pH stabilization instead of fast fixes. The nutrient dosing system for fish should have backup sensors and alarms to keep fish safe.

Many fish farms connect water testing with feeding systems. Change your nutrient dosing schedule to avoid stress during feeding, and keep filters clean to handle waste that changes water chemistry.

How do nutrient dosing systems help the planet?

Nutrient dosing systems for sustainable farming cut down on wasted fertilizer by giving plants only what they need when they need it. These systems stop extra nutrients from running into streams and rivers. Through careful nutrient dosing adjustment based on what plants actually use, farmers can be kinder to the environment.

Many systems include nutrient waste reduction features like water recycling and filtering. The nutrient dosing optimization possible with automatic systems helps grow more food with fewer resources.

What should I think about when setting up nutrient dosing for vertical farming?

Nutrient dosing systems for vertical farming must handle growing plants on many levels with different needs. Think about whether each level needs its own nutrient delivery system or if they can share. Vertical farms often have different climates at different heights, affecting how plants drink and eat, so you need sensors in each zone.

Your nutrient dosing system programming should handle these differences. Be careful with nutrient dosing tubing layout to make sure all levels get equal pressure. Since vertical farms use grow lights, match your nutrient dosing schedule with light cycles.

How does a nutrient dosing system work with other farm tools?

Modern nutrient dosing system integration connects with climate control, watering systems, and farm management software. This lets nutrient dosing adjustments happen based on sunlight or humidity levels. The nutrient dosing system automation can start watering when needed.

Many systems let you check things from your phone using nutrient dosing software that sends alerts when something’s wrong. For precision agriculture, systems might connect with plant monitoring tools to adjust feeding based on growth stage and plant stress.

What nutrient dosing schedule works best for big greenhouses?

The best nutrient dosing schedule changes based on what you grow, how old the plants are, and weather conditions. Most big greenhouses program different nutrient dosing formulas for day/night and different growth stages. Commercial nutrient dosing systems usually change feeding based on real-time light, temperature, and humidity.

Many growers use systems that feed plants when EC or moisture levels drop too low. Advanced systems might change the nutrient dosing rate throughout the day to match when plants eat most, feeding more during peak growing hours.

How can I make sure nutrient dosing is accurate in big systems?

Keeping nutrient dosing accuracy in big systems means putting sensors in many places, not just one spot. Clean nutrient dosing sensors regularly to prevent slime buildup that causes wrong readings.

Test actual water samples against what sensors say each week. Use flow meters to check if nutrient dosing pumps work right.

Big systems work better with zone monitoring to catch problems in different areas. Keep good records of nutrient dosing system monitoring to spot slow changes before they become big problems.

What are the good things about using fertigation with nutrient dosing systems?

Using a nutrient dosing system for fertigation combines watering and feeding plants in one step. This gets nutrients right to plant roots, improving nutrient absorption. The nutrient dosing system for drip irrigation helps with water management by using just what plants need and wasting less.

Fertigation works great with nutrient dosing automation to change mixtures based on what crops need and weather conditions. For big farms, fertigation saves lots of work compared to watering and feeding separately.

How are commercial nutrient dosing systems different from small ones?

Commercial nutrient dosing systems handle much more water and have backup parts to prevent crop loss. They usually have tough industrial-grade nutrient dosing pumps, multiple backup sensors, and safety programming.

These systems give better nutrient dosing system monitoring with data recording and analysis.

Many commercial systems can control different zones for different crops or growth stages. Commercial setups usually connect with climate systems and let you manage things remotely, which is key for large scale nutrient dosing operations.

What care does a nutrient dosing system need?

Regular nutrient dosing system maintenance includes cleaning sensors weekly, checking pumps monthly, and doing full system checks every three months. Clean filters weekly to prevent clogs. Check nutrient dosing tubing for pinches, leaks, or mineral buildup monthly.

Test pH and EC sensors against standard solutions weekly. Look at nutrient dosing pumps for wear and recheck flow rates monthly.

Clean tanks and flush lines every three months to prevent algae and slime. Replace tubing yearly or when it looks worn. Most problems can be stopped through regular care instead of emergency fixes.

How can I make the best nutrient dosing formula for different crops?

Creating the right nutrient dosing formula means knowing what each crop needs at different growth stages. Start with basic recipes for your crop type, then adjust based on plant tissue tests and how plants respond.

Most nutrient dosing system controllers let you program different formulas that switch based on plant growth stage.

For big farms growing many crops, area-specific formulas help each plant type grow best. Watch and write down how plants respond to formula changes to build special recipes for each crop over time.

Conclusion

Nutrient dosing for such large systems is a substantial undertaking, involving numerous pumps and extensive piping. However, with the appropriate components and meticulous management, successful outcomes are achievable.

Consistent yields are observed, high-quality plants thrive, and there is also a reduction in waste, which benefits the environmental impact.

It is suggested that even a few precise milliliters per gallon, perhaps targeting specific parameters like an EC of 1.8 and a pH of 6.0, can make a significant difference. Coupled with this precision, regular water quality checks are essential.

Related Articles

• https://tophydroponicgarden.com/nutrients/
• https://tophydroponicgarden.com/balancing-nutrient-ratios-in-hydroponics/
• https://tophydroponicgarden.com/hydroponic-fertilizer-choices-for-cucumbers/

References

1. https://www.dosatron.com/en-us/nutrient-delivery-system/large-hydroponic-systems
2. https://pmc.ncbi.nlm.nih.gov/articles/PMC8650588/
